Ecobloc Bioswale Systems

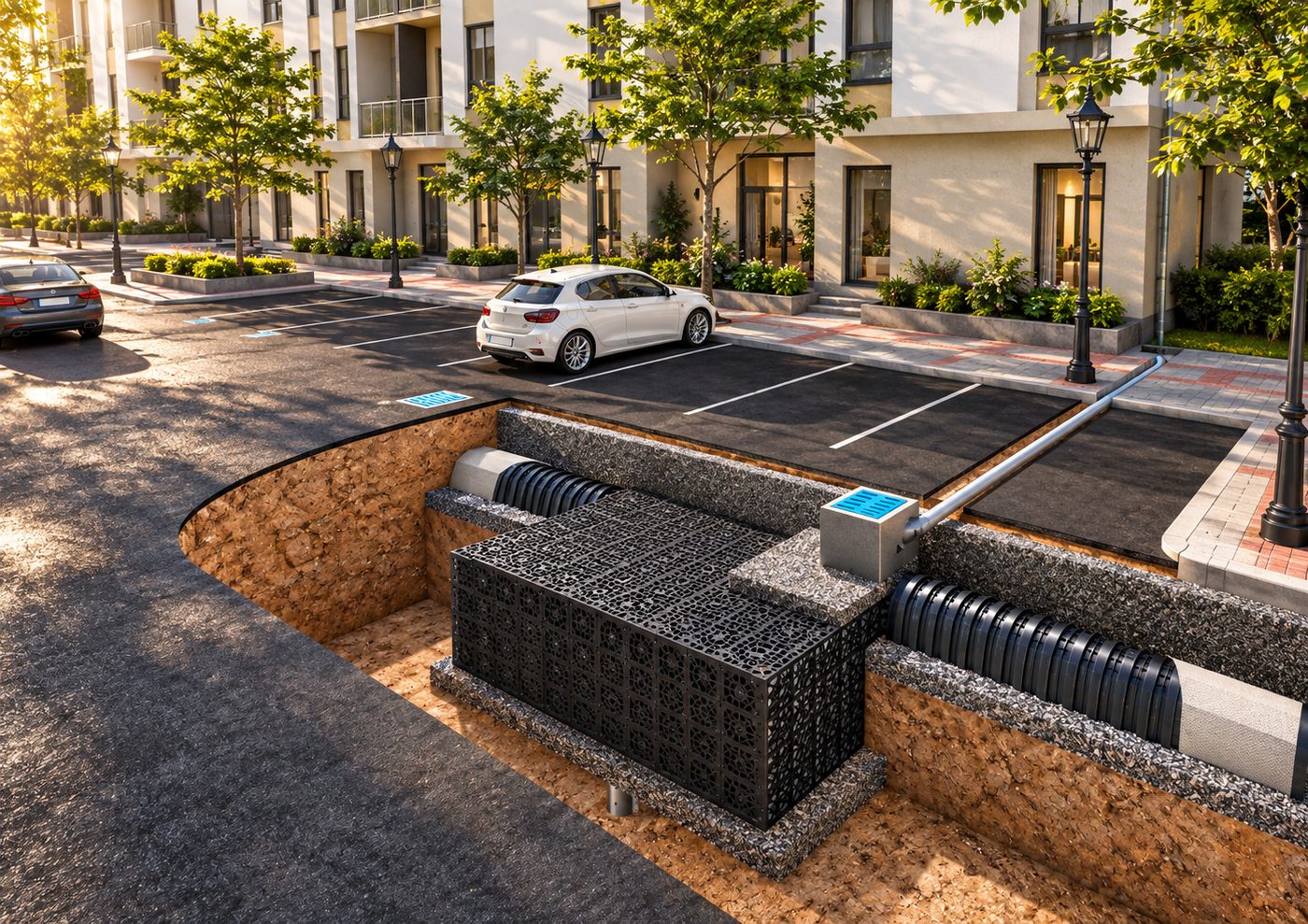

A sectional cutaway shows a modular Ecobloc tank and tunnel stormwater system installed beneath a car park, connected by piping to a surface inlet grate, with apartment buildings, planting beds and street lighting above ground.

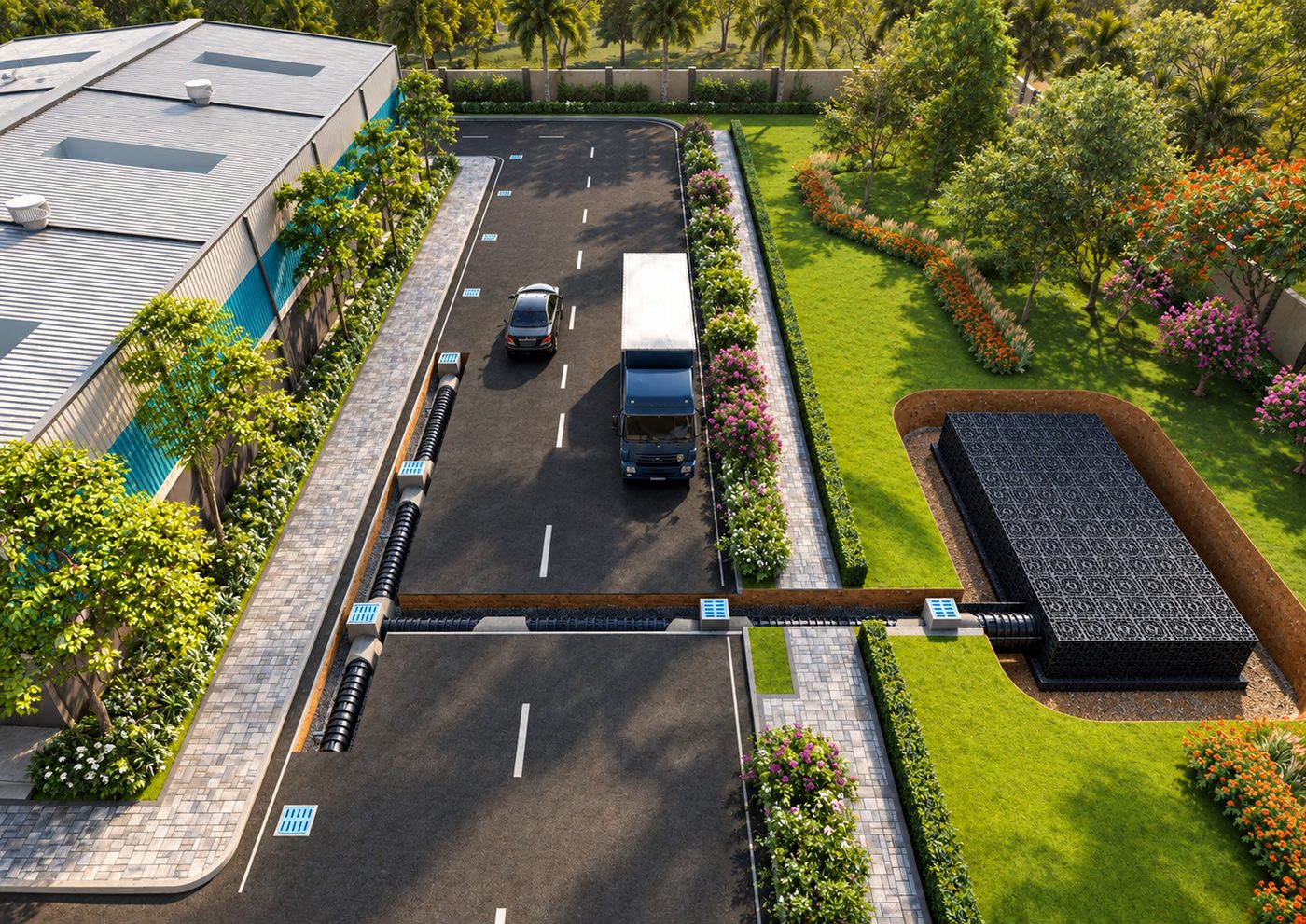

An aerial cutaway shows an underground Ecobloc tank linked by black tunnel piping beneath a factory access road, with surface inlet grates, a lawn and flowering shrub border, and a warehouse building alongside.

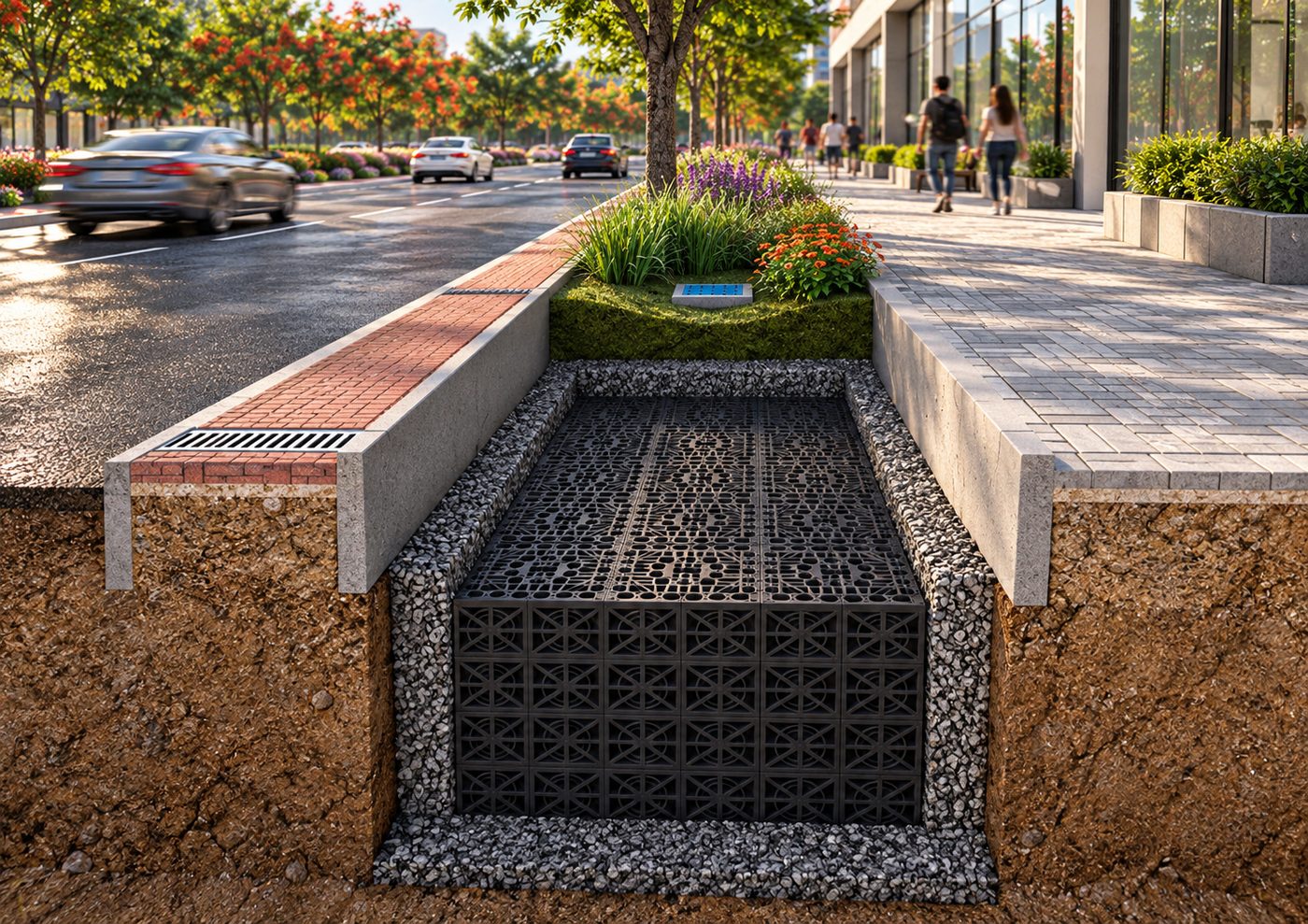

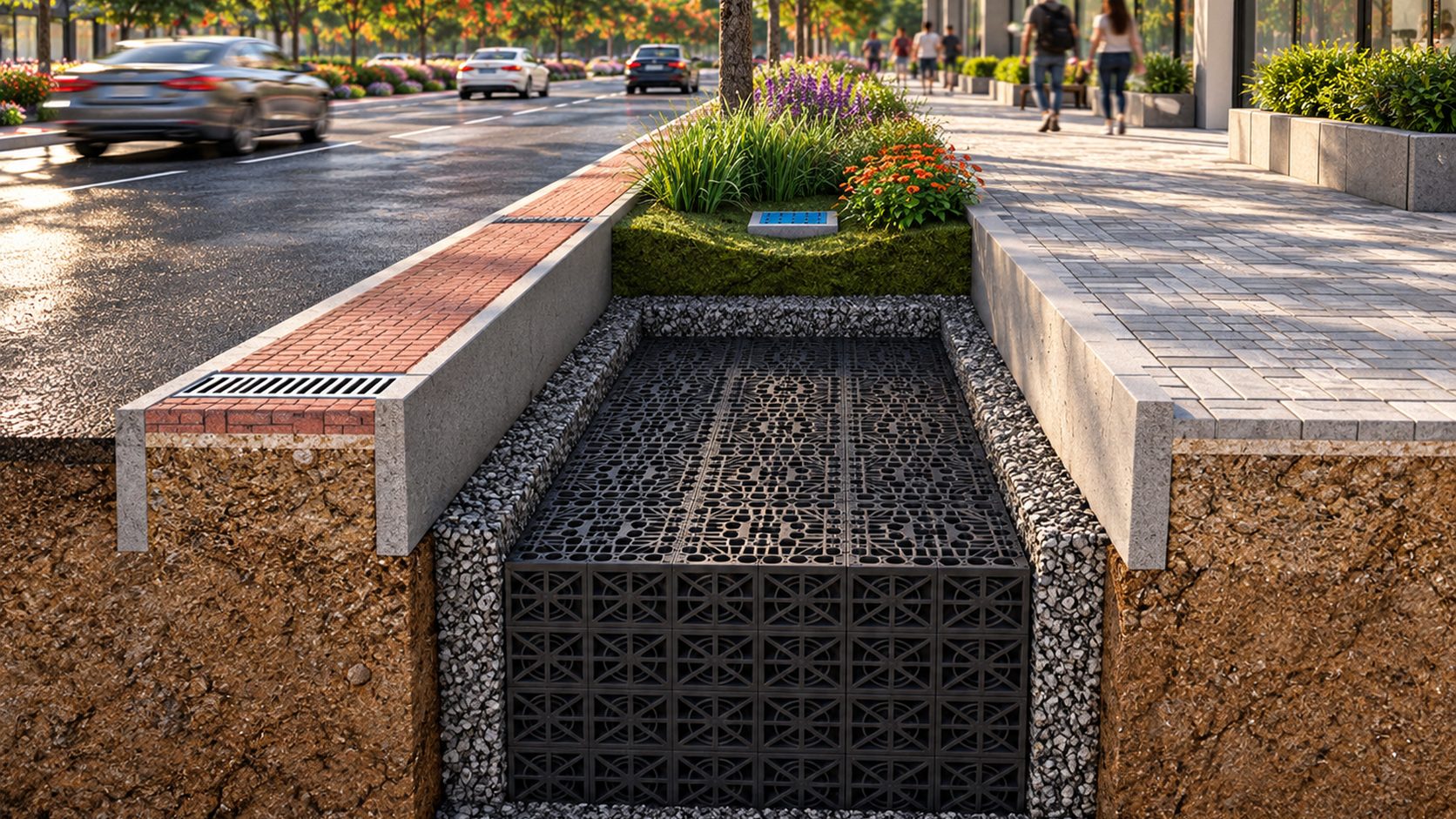

A street-side cutaway shows a modular Ecobloc bioswale block bedded in gravel beneath a paved kerb inlet, with a road, parked cars and a planted verge of ornamental grasses and flowers above.
(The project)
Ecobloc Bioswale Systems.
Cross-section and site views of modular Ecobloc tank and tunnel stormwater attenuation systems installed beneath car parks, roads and paved verges.

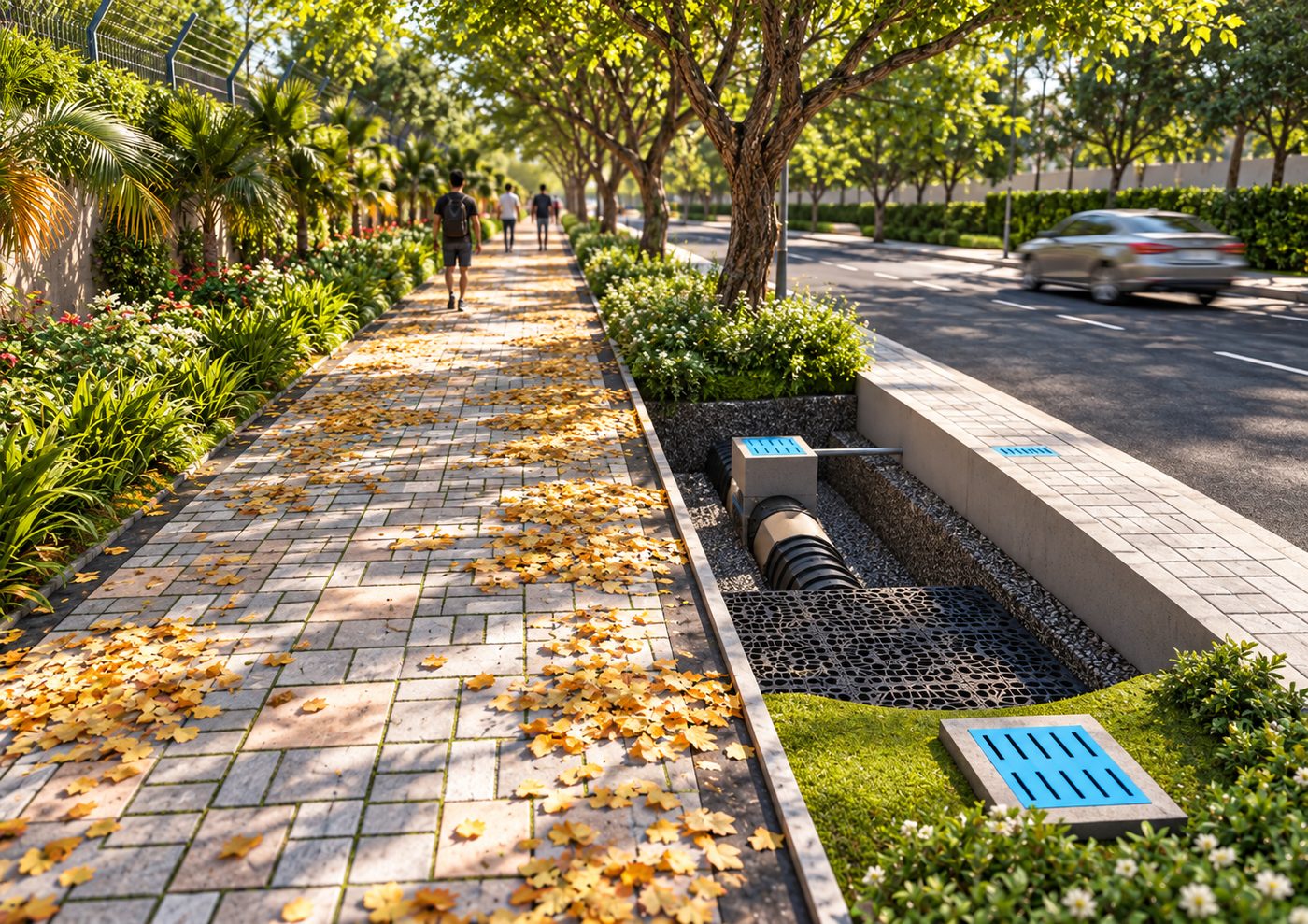

A tree-lined paved footpath at Semmozhi Poonga, Coimbatore, is shown with a cutaway of an Ecotunnel and Ecobloc drainage system beneath the kerb, connected to a roadside inlet grate, alongside planted borders and a boundary wall.

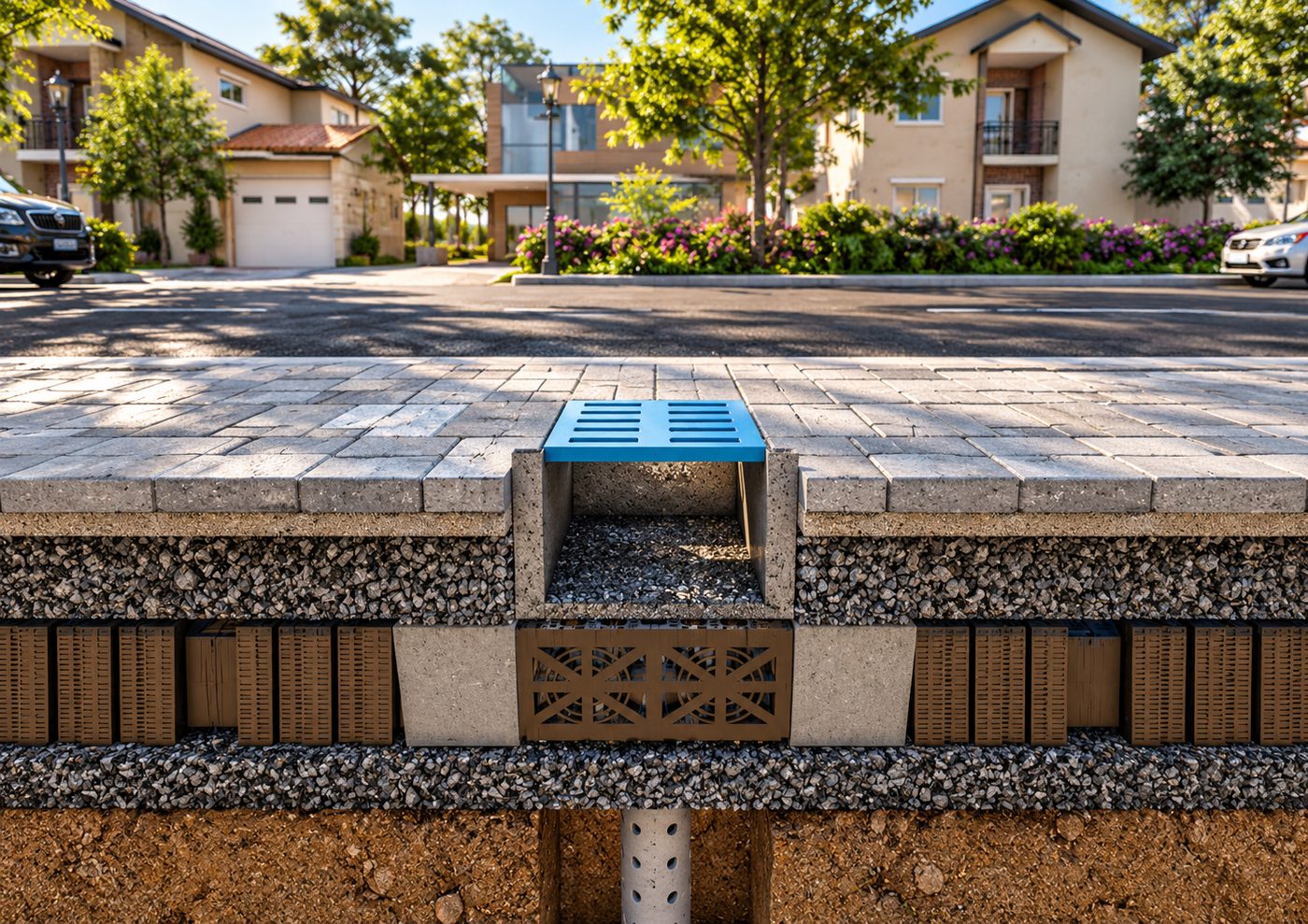

A close-up cutaway shows paving layers over a blue-grated inlet leading to a modular Ecobloc block within a gravel bed, set within a residential street with parked cars and planted verges in the background.
On the images
The images on this page are visualisations produced by the practice. Descriptions set out what each image shows.
